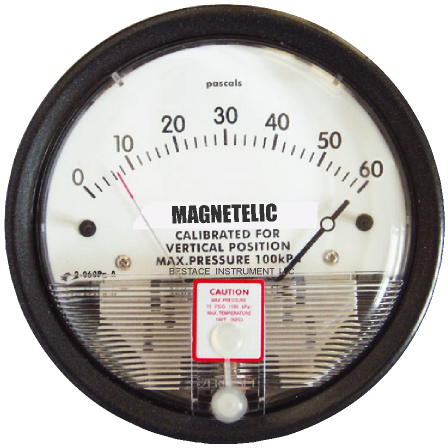

Select the SERIES P2000 Gage for high accuracy--guaranteed within 2% of full scale--and for the wide choice of 81 models available to suit your needs precisely. Using Bestace's simple, frictionless gage movement, it quickly indicates low air or non-corrosive gas pressures--either positive, negative (vacuum) or differential. The design resists shock, vibration and over-pressures.

Note: May be used with Hydrogen. Order a Buna-N diaphragm. Pressures must be less than 35 psi.

Product Applications

·       Filter Monitoring

·       Air Velocity with Bestace's Pitot Tube

·       Blower Vacuum Monitoring

·       Fan Pressure Indication

·       Duct, Room or Building Pressures

·       Clean Room Positive Pressure Indication

Specifications

Features

• Bezel provides flange for flush mounting in panel.
• Clear plastic face is highly resistant to breakage. Provides undistorted viewing of pointer and scale.
• Precision litho-printed scale is accurate and easy to read.
• Red tipped pointer of heat treated aluminum tubing is easy to see. It is rigidly mounted on the helix shaft.
• Pointer stops of molded rubber prevent pointer over-travel without damage.
• "Wishbone" assembly provides mounting for helix, helix bearings and pointer shaft.
• Jeweled bearings are shock-resistant mounted; provide virtually friction-free motion for helix. Motion damped with high viscosity silicone fluid.
• Zero adjustment screw is conveniently located in the plastic cover, and is accessible without removing the cover. O-ring seal provides pressure tightness.
• Helix is precision made from an alloy of high magnetic permeability. Mounted in jeweled bearings, it turns freely, following the magnetic field to move the pointer across the scale.
• Calibrated range spring is flat spring steel. Small amplitude of motion assures consistency and long life. It reacts to pressure on diaphragm. Live length adjustable for calibration.
• Silicone rubber diaphragm with integrally molded O-ring is supported by front and rear plates. It is locked and sealed in position with a sealing plate and retaining ring. Diaphragm motion is restricted to prevent damage due to overpressures.
• Die cast aluminum case is precision made and iridite-dipped to withstand 168 hour salt spray corrosion test. Exterior finished in baked dark gray hammerloid. One case size is used for all standard pressure options, and for both surface and flush mounting.
• OVERPRESSURE PROTECTION
  Blowout plug is comprised of a rubber plug on the rear which functions as a relief valve by unseating and venting the gage interior when over pressure reaches approximately 25 psig (1.7 bar). To provide a free path for pressure relief, there are four spacer pads which maintain 0.023" clearance when gage is surface mounted. Do not obstruct the gap created by these pads. The blowout plug is not used on models above 180" of water pressure, medium or high pressure models, or on gages which require an elastomer other than silicone for the diaphragm. The blowout plug should not be used as a system overpressure control. High supply pressures may still cause the gage to fail due to over pressurization, resulting in property damage or serious injury. Good engineering practices should be utilized to prevent your system from exceeding the ratings of any component.
• O-ring seal for cover assures pressure integrity of case.
• Samarium Cobalt magnet mounted at one end of range spring rotates helix without mechanical linkages.
• Patented design provides quick response to pressure changes means no delay in assessing critical situations
• Durable and rugged housing and high-quality components combine to provide long-service life and minimized down-time

Options

• ASF Adjustable Signal Flag
• HP High Pressure Option
• LT Low Temperatures to -20°F
• MP Med. Pressure Option
• SP Setpoint Indicator
• Scale Overlays Red, Green, Yellow, Mirrored or Combination, Specify Locations

·       Mounting
A single case size is used for most models of Magnehelic® gages. They can be flush or surface mounted with standard hardware supplied. Although calibrated for vertical position, many ranges above 1" may be used at any angle by simply re-zeroing. However, for maximum accuracy, they must be calibrated in the same position in which they are used. These characteristics make Magnehelic® gages ideal for both stationary and portable applications. A 4-9/16" hole is required for flush panel mounting. Complete mounting and connection fittings, plus instructions, are furnished with each instrument.
